MEJIT ISLAND SOLAR POWER SYSTEM
Mejit Island. (New Year Island)
Location 10°16.6725N 170°52.7847E
Lagoon Area 0 sq miles = 0 sq km
Land Area 0.72 sq miles = 460 Acres = 186 Hectares
Population 416 (1999 census)
No. of Homes 80
Mejit Island Solar home power systems
MEJIT ISLAND SYSTEMS.
These consist of two panels producing 150Wp mounted on an all aluminum pole structure with a single 305Ah deep cycle battery, charge controller and circuit breaker all mounted within a weatherproof box clamped to the support pole four feet above the ground.
The system provides power to three indoor mounted sealed 15W fluorescent light tubes, a single waterproof 15W exterior fitting and an LED night light. Also included is a multi-voltage DC outlet power supply for electrical equipment.

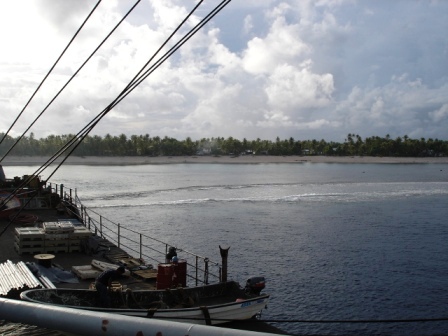

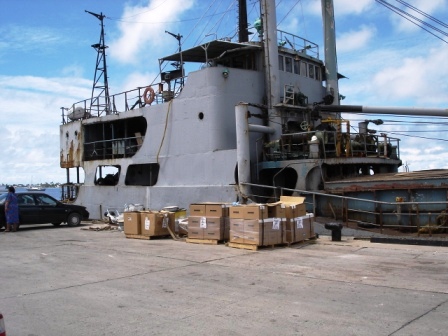

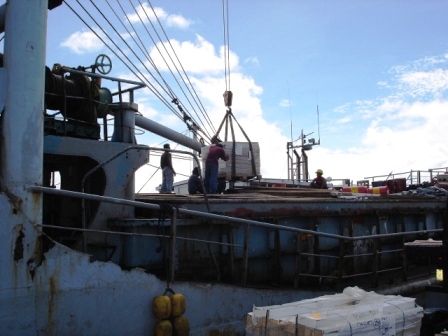

Loading the chartered ship in Majuro

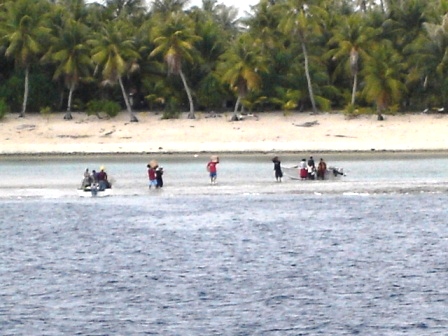

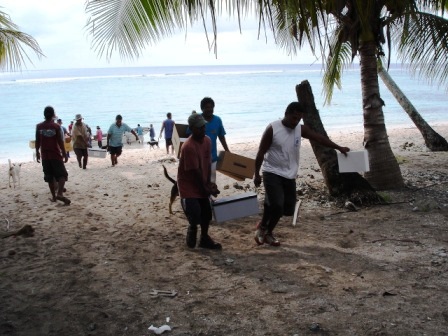

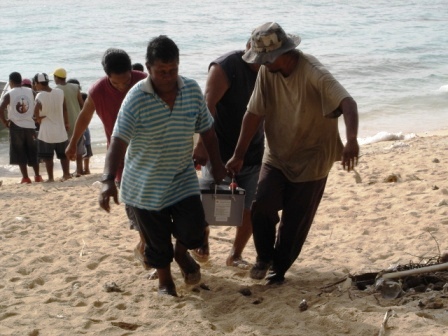

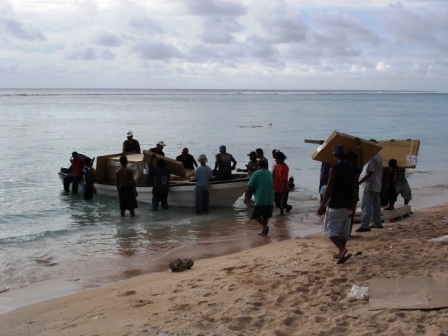

Unloading the equipment from the ship to the island

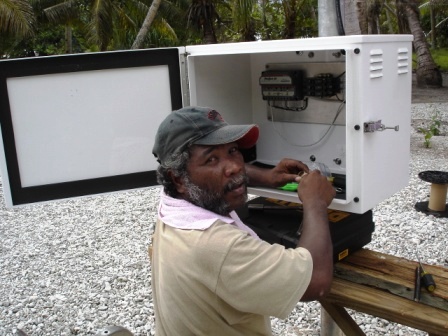

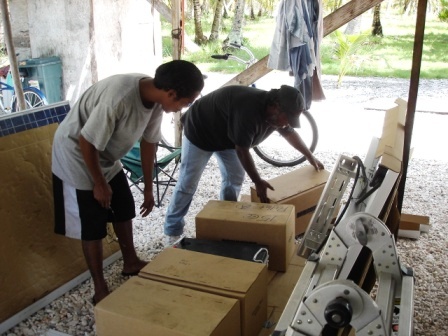

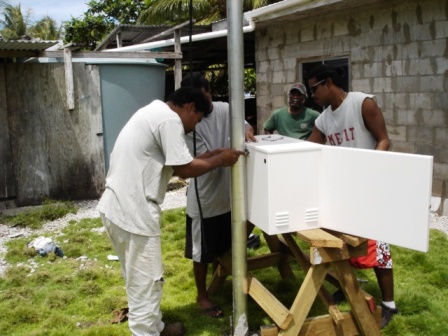

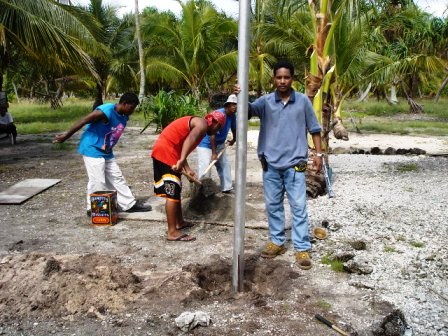

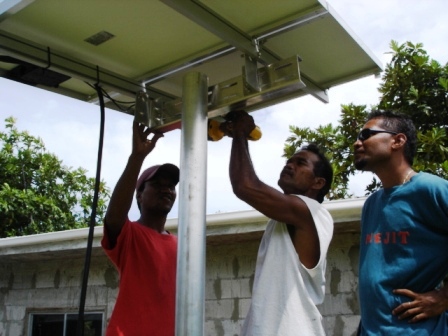

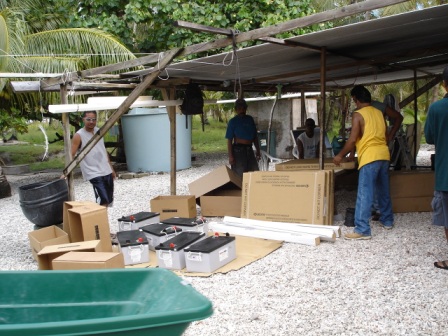

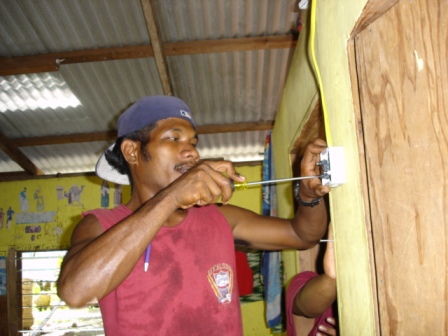

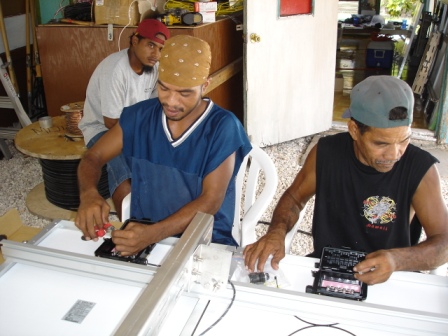

Installation of the systems

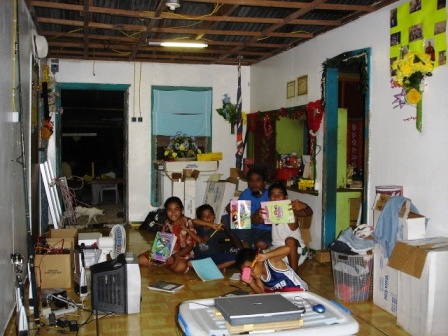

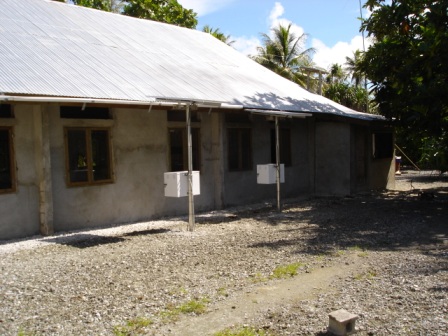

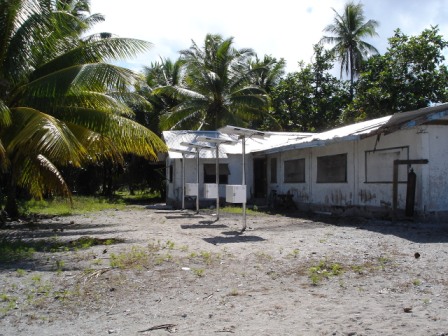

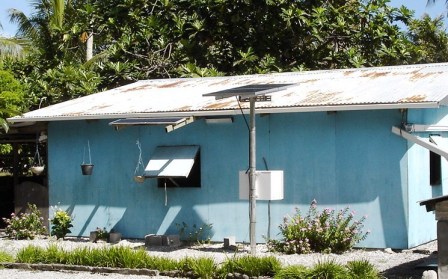

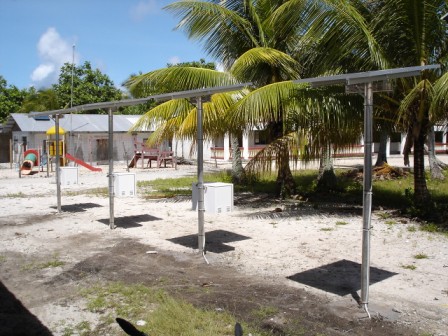

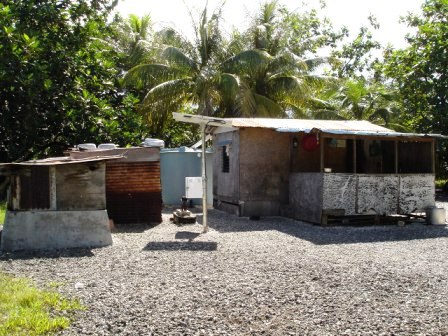

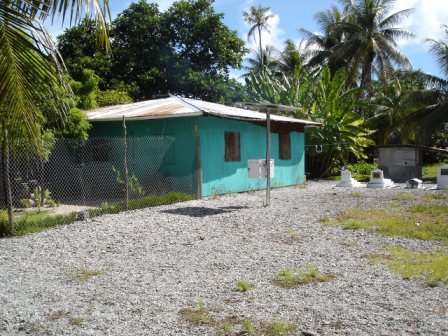

Completed systems
